Wagner Intercooler - Clio 4 RS

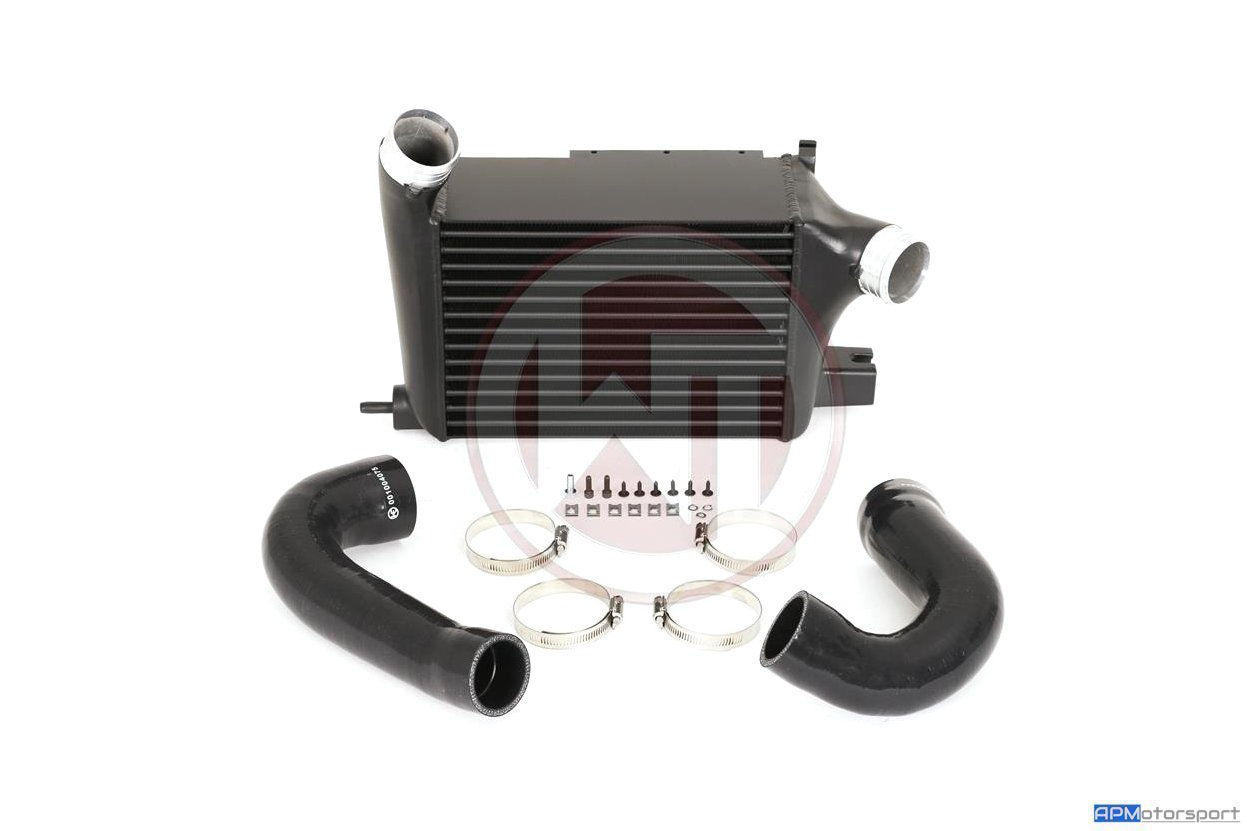

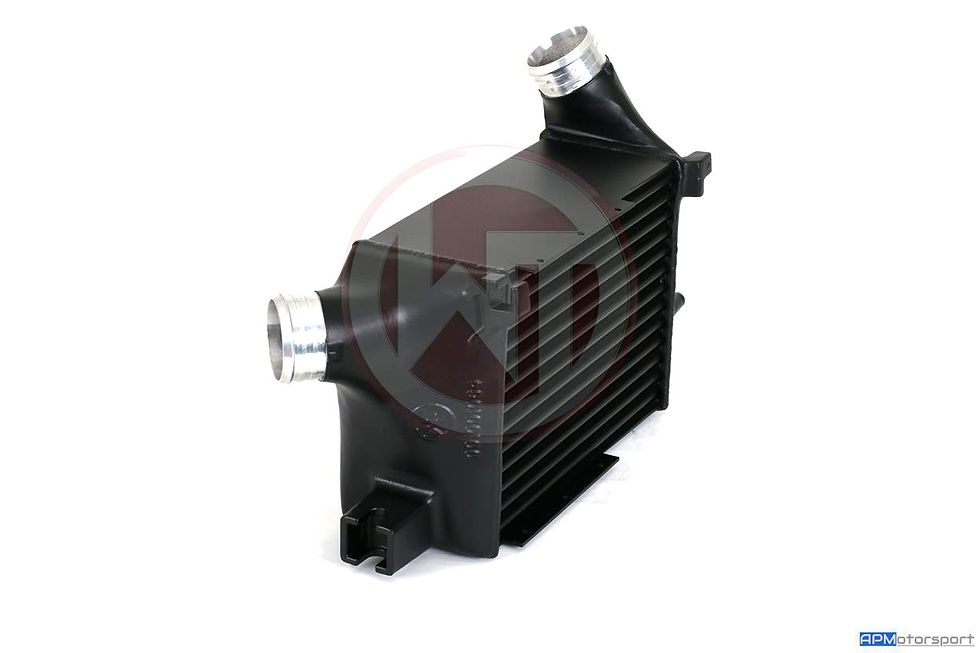

Clio IV RS Wagner Intercooler
The high performance intercooler has the following core dimension (300mm x 222mm x125mm) = 7,7L / (11,81Inch x 8,74Inch x 4,92Inch) = 469,88Inch³ and thus offers a 16% larger cooling surface and 113% more charge air volume compared to the stock mounted intercooler.
The new developed competition intercooler core supports a very high ratio of airflow and is also very light. The weight of the complete intercooler is only 5,5kg. The endtanks are made of cast aluminium and have been optimised under flow analysis in the CFD system. With the help of additional air guides, inside the inlet, an uniform filling of the intercooler is provided.

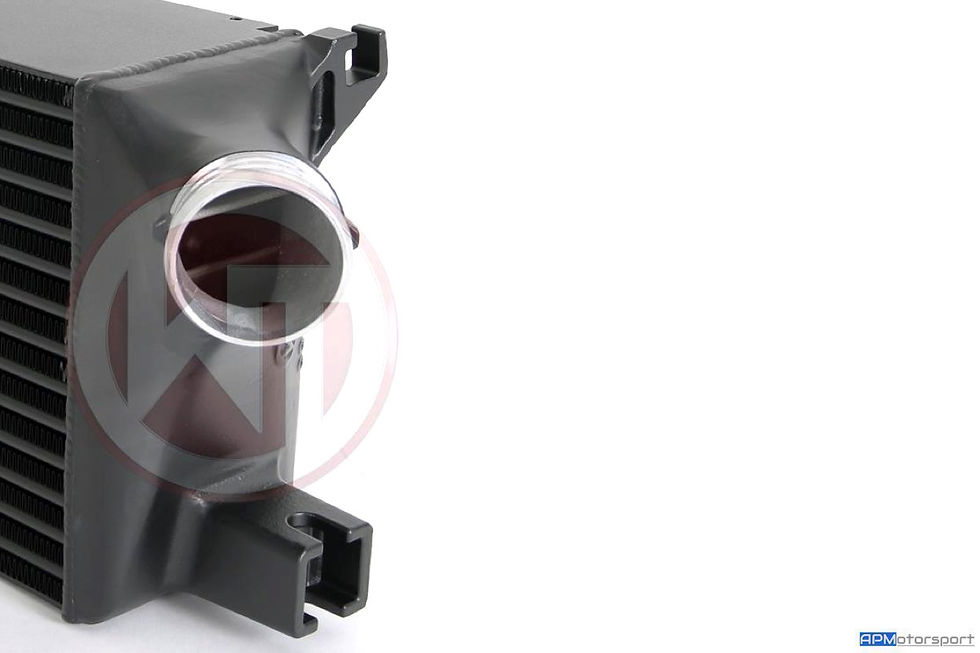

The stock click connections have been eliminated and increased to a connection diameter of Ø60mm (2,36Inch) for in- and outlet. The results are excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing.
All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissipating character. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance!
Dimensions - Stock Intercooler:
Cooling Surface 57.600mm² (89,28Inch²)
Charge-Air-Volume 3,6L (219,69Inch³)
Dimensions - WAGNER TUNING Intercooler:
Cooling Surface 66.600mm² (103,23Inch²)
Charge-Air-Volume 7,7L (469,88Inch²)
kit comes with:
2 Silicone Hoses
1 Mounting Material
1 Installation Instruction
